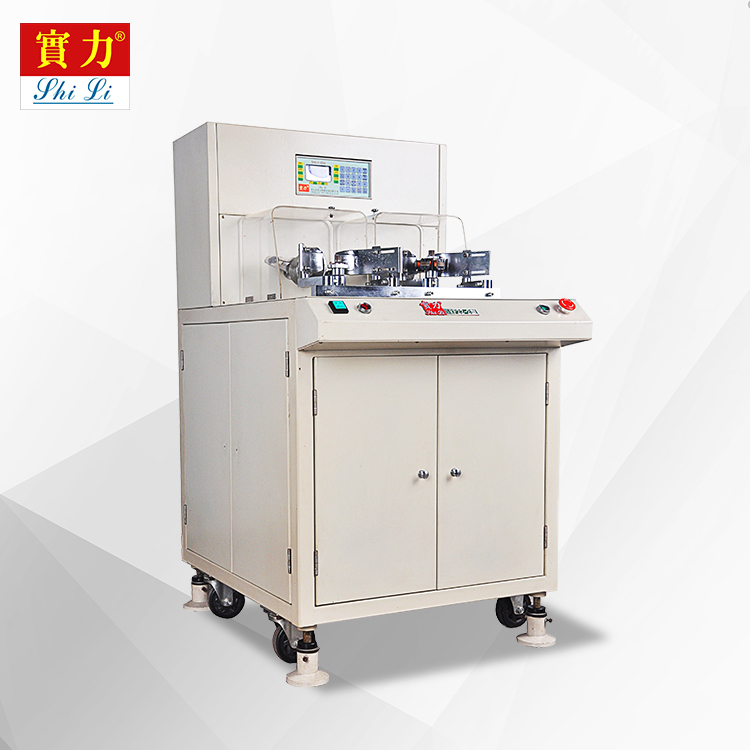

Transformer automatic winding machine is the most important core production equipment in the production process, its wire winding capability determine the electrical characteristics of the transformer and the coil whether beautiful,  at present there are mainly three types of transformer winding machine: horizontal winding machine, vertical winding machine, automatic winding machine, side of the winding machine. They are used in different areas of the production of transformers, with advances in technology, the winding machine is great, mainly reflected in the functionality and performance of the winding, here we talk about how to properly use a simple cnc transformer winding machine .

First, the correct parameter setting of transformer winding machine

cnc winding machine, the use way of automatic winding machine need to train in the beginning , or else don’t know how to operate ,the machine is easy to damage Or inefficient.

Whether automatic winding machine can work normally plays a key role in setting the right, transformer winding machines, unlike other automatic winding machine is part of a slow running equipment, because the production process determines the frequency transformer equipment Starting and constant torque requirements, general transformer winding machine parameters need to be set are: set number of turns is a device based on the production process need to run a few laps, and it is divided into the total number of turns of each step sequence and the corresponding number of turns, setting to note is equal to the sum of the total number of turns each step sequence number of laps; climbing function setting is a common argument that it is mainly the slow start-up and run-time parking control equipment, play soft start and stop buffer role, allows the operator to set the right of workers to have a process of adaptation tension when you start winding machine, with a buffer when the device will be able to stop more accurate when parking; running speed for speed control device runtime speed setting requires a combination of the production process and the winding of the actual working conditions decided not conducive to fast and slow coil molding, rapid run will not help control operator, increased vibration and noise devices, too slow to run will be great capacity and efficiency of the extent play equipment, will also affect the spindle torque output device; sequential step sequence function is used to control equipment operation, it is generally determined based on the production process, forming a coil winding is not just enameled wire wound, there are many other steps such as wrapping paper layer, an insulating cloth bag and so on, so the correct setting step sequencer functions will effectively play the efficiency of the device.

Second,Proper handling and shaping moldsAutomatic winding machine using only the correct wire mold it to work, the correct handling of the coil forming mold played a key role in the process of loading and unloading the mold is generally loosen the fastening device, and then remove the thimble tail stock equipment, and finally the use of displacement means the coil is removed, the installation should pay attention to the first mold fixtures installed in the automatic winding machine, and adjust it against the tail stock thimble winding mandrel, finally making locking; thimble when not release the coil winding process for shaping and equipment should be in a stopped state, only handled properly that better play the efficiency of the equipment.
