The control unit of the NC winding machine, the operation and monitoring of the numerical control winding machine and all the central control board, it is the brain of the whole machine.

Compared with the conventional winding machine, the NC winding machine has the following characteristics:

1 the winding process is stable and has the same quality of the coil;

2 enterprise coil products change, generally only need to change the numerical control process, can save the production preparation time;

3 the equipment itself has high precision and high production efficiency;

4 machine with high degree of automation, can reduce labor intensity;

5 to the operator's quality requirements are relatively high, the technical requirements for maintenance technical personnel higher.

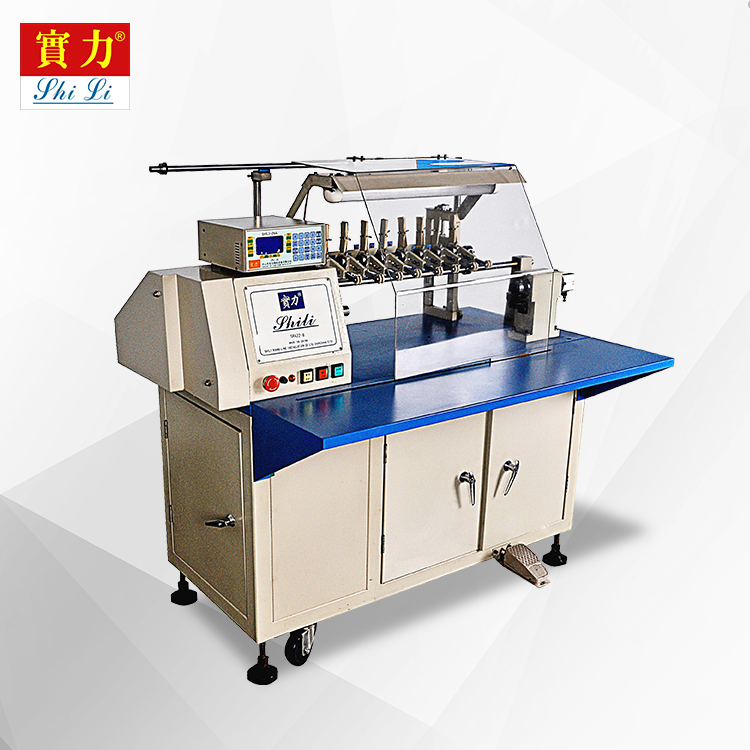

The numerical control winding machine is composed of the following parts:

1 host, it is the theme of the whole machine, including mechanical electrical box, spindle, winding mechanism and electrical parts etc.. According to customer requirements, various parts and components in the free combination, configure different series and standard products.

2 control device, is the core of the whole winding machine, including hardware (printed circuit boards, all kinds of IC, LCD screen, key functions, external switches and instructions, etc.) and internal infusion of appropriate software, etc..

3. Drive device, which is CNC winding machine actuator drive components, including spindle drive unit, since the cable unit, spindle motor, servo motor, microstepping motor. It is through the control of the master control board of the electric or electro-hydraulic servo system and the spindle drive cable. When several action units are linked, the winding of the predetermined parameters can be completed.

4. Auxiliary device, the index control winding machine some necessary supporting parts, to ensure the CNC winding machine line operation, such as cooling shaft flow fan, thimble, lighting, monitoring and so on.

Since the advent of the first numerical control winding machine, the numerical control winding machine has been widely used in the electronic equipment manufacturing industry, especially in the automotive, aerospace, and military industries. It has a rapid development in both hardware and software.
